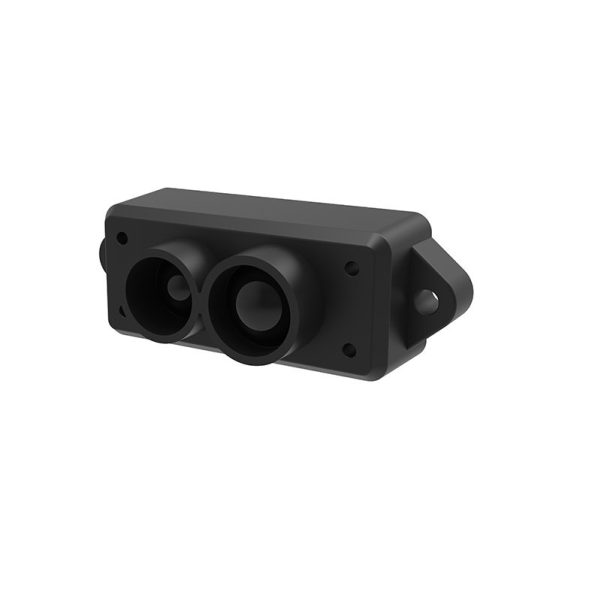

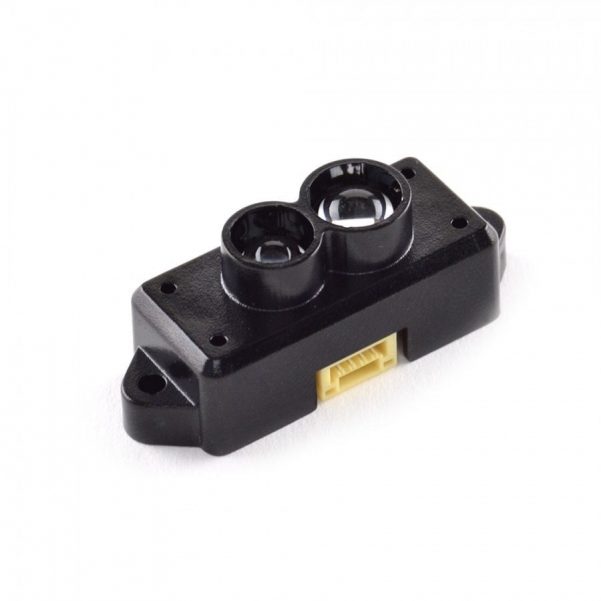

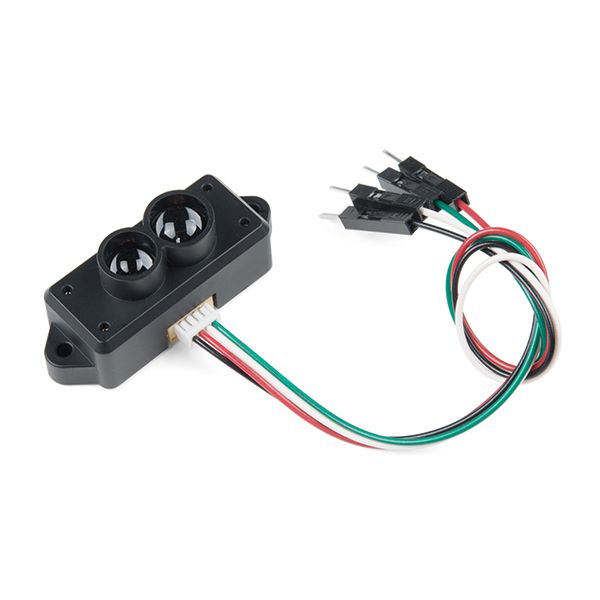

TFmini-S is a single-point ranging LiDAR based on the TFmini upgrade.
The distance range is not disturbed by ambient light, which can be consistent with the indoor range and the accuracy is further optimized
The error performance at 10% reflectivity approaches the background of 90% reflectivity, and the interface supports UART and I2C switching at any time.
Features:
Small size
Lightweight
Low power consumption
High frame rate(up to 1000Hz)
Application:
Unidirectional ranging LiDAR.
Obstacle avoidance.
Assisted landing.
Terrain following.
Robots outdoor obstacle avoidance.
Intelligent parking. Crane operations.
Vehicle position sensing.
Vehicle detection for barrier gate control.
High-precision & High-speed measurement.
Eye-safe infrared LED light.
Compact size, lightweight.
Good performance for height fixing and terrain-following drones.
Specifications:
Operating Range
0.1m~12m@90%Reflectivity
Accuracy
±6cm@（0.1-6m)
±1%@（6m-12m）
Distance Resolution(cm)
1
Frame Rate(Hz)
100
Ambient light immunity
70Klux
Operating Temperature(℃)
0℃~60℃
FOV
2°
Supply Voltage(V)
5V±0.1V
Average current(mA)
≤140mA
Power Consumption(W)
≤0.7W
Peak current(mA)
200
Communication Interface
UART / I2C
Cable Length(cm)
10
Dimension in mm(L*W*H)
42*15*16
Weight(g)
5g±0.3g
Shipment Weight
0.03 kg
Shipment Dimensions
5 × 2 × 2 cm
