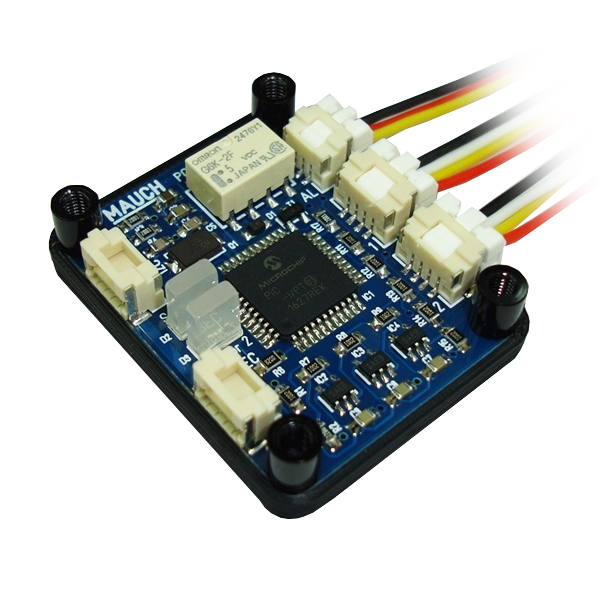

This sensor hub allows to connect two PixHawk Mauch current sensors in parallel in order to add their current capacities.
The current of both sensors is summarized before reaching the flight controller while the voltage measurement of the LiPo packs are collected from both sensors and passed through the hub to the flight controller.
The main purpose of this hub is to replace existing protection circuits and to monitor that both paralleled LiPos are supplying the same current to the system.
Thanks to Mauch Sensor Hub X2, you can spot early when a LiPo starts to fail, way before this situation is irreversible.
In case of difference in current is of +/- 15%, the alarm output goes ON in order to indicate the fault. The pilote should then land immediately in order to check the batteries.
This sensor hub is to connect two PL-xxx current sensors in parallel. The current of both sensors will be summarized and passed to the FC. The voltage measurement of the LiPo packs will be collected from both sensors and passed through the Hub to the FC.
The main purpose of this hub is to replace existing protection circuits (like an ideal diode) and to monitor, that both paralleled LiPo’s supply the same current to the system.
Since we monitor the current of both batteries, we will find out very early when a LiPo starts to fail… before it is too late.
If the difference in current is larger than +/- 15%, the Alarm output will be ON to indicate the fault… the pilot should immediately land and check the batteries.
The I2C bus is for future integration.
To set up a complete system you would need:

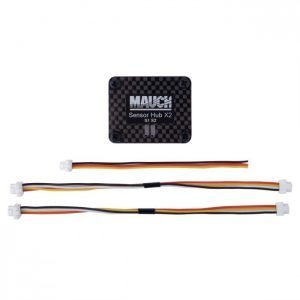

1x PL Sensor Hub X2
2x Current sensor board:
2x PL-050 = 2x50A = 0-100A Total
2x PL-100 = 2x100A = 0-200A Total
2x PL-200 = 2x200A = 0-400A Total
1x Power supply, which can be any of the Premium-Line series BEC’s
39mm x 31mm x 9mm / 7g without cables and without enclosure

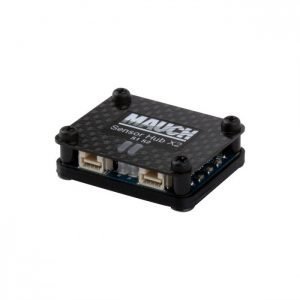

42mm x 34mm x 10mm / 13g with enclosure and without cables
