DroneCAN-first design, optimised for aircraft integration.
Powered by Hargrave’s next-gen GateKEEPER core.
Specifications:
Operating Voltage: 60V
Continuous Current: 60A
Base Weight: 94g
Protection Rating: IP67
DRIVE Different.
microDRIVE LP gives you the choice between our groundbreaking high-efficiency FOCAL algorithm and our rapid-response Trapezoidal drive, so you can get the most out of your motor for your vehicle.
It’s more connected to your motor than ever. Temperature and three hall effect sensor inputs open a world of possibilities, including:
Propeller Parking
Sensored Drive
Motor Temperature Protection
Modern Communications.
Full DroneCAN support.
microDRIVE LP takes advantage of the full DroneCAN specification to enable you to reliably deploy your system at scale. In addition to robust throttle commands, you can configure 60+ parameters and update firmware from your flight computer, ensuring every ESC is always performing exactly as expected.
DroneCAN telemetry lets you gather critical data like current, voltage and RPM from your ESCs in real-time. microDRIVE LP constantly monitors and reports status so you can catch issues before they occur.
Bidirectional DShot and PWM are also supported.
Ready for Anything.
Rain, hail or shine. IP67 rated.
Whether you’re flying in dusty deserts, torrential downpours or over wide open ocean, the microDRIVE LP is well protected against the elements.
Featuring an IP67 rating, the unified housing is dust-proof and can be submerged at 1 m (3 ft) depth for 30 minutes, enabling the highest reliability in the most challenging environments.

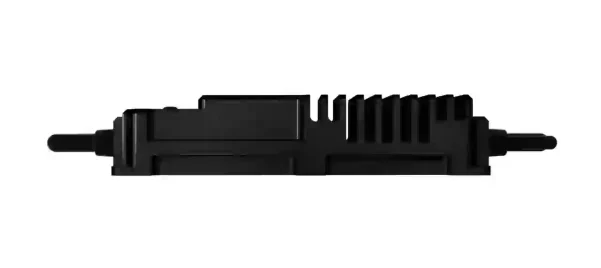

The enclosure also acts as the thermal management solution, deeply integrated with the electronic design to extract as much power as possible.
Heavy on Features.
Light on Weight.
High-speed circular data logging, with storage for up to 72 hours).
